Linear Pendant Architectural Linear Pendant Light
Modular suspended linear lighting with customizable lengths
20W-60W per meter IP20 2700K / 3000K / 4000K / 5000K
View Details
Optical Line Light
SASO
G-Mark
CE
RoHS
Optical Line Light — Wide Profile
DIY modular optical line light with interchangeable lens/reflector system
Wattage
20W-50W per meter
Luminous Efficacy
100-120 lm/W
IP Rating
IP20
Warranty
5 years
Yakeen optical line light with wide 70mm profile — modular DIY system with interchangeable optical components (lens, reflector, honeycomb, grille). Max 4m per section with 286mm segments. Pendant, recessed, or surface mounted. SASO & G-Mark certified for premium commercial lighting.
SASO G-Mark CE RoHS MOQ
30 pieces
Lead Time
20-30 days
Applications
Where Optical Line Light Shines
Offices
Architectural linear lighting with precise optical control.
Hotels
Premium line lighting for lobbies and feature areas.
Business Areas
Sleek, professional lighting for corporate environments.
Supermarkets
Even, high-quality illumination for retail floors.
Abu Dhabi, UAE · 2024
Premium Office Space
Technical Specifications
| Parameter | Value |
|---|---|
| Wattage | 20W-50W per meter |
| Luminous Efficacy | 100-120 lm/W |
| Color Temperature | 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>90 |
| Beam Angle | 30° / 60° / 90° (single 18°, double 20°/40°) |
| IP Rating | IP20 |
| Dimming | DALI / 0-10V |
| Lifespan | L70 > 50,000 hours |
| Warranty | 5 years |
| Certifications | SASO, G-Mark, CE, RoHS |
| MOQ | 30 pieces |
| Lead Time | 20-30 days |
Key Features
- Modular DIY system with interchangeable optical components
- Optical options: lens (down-light), reflector, honeycomb, grille
- Beam angles: 30°/60°/90° + single 18°/double 20°/40°
- Max 4m per section (286mm segments)
- Three installation: pendant, recessed (with trim), surface mounted
- Black or white housing, 7 end cap types, L-type 180° extender
Technical Options
- Dimming
- DALI / 0-10V
- Lifespan
- L70 > 50,000 hours
- CRI
- Ra>90
- Beam Angle
- 30° / 60° / 90° (single 18°, double 20°/40°)
FAQ
Optical Line Light Questions
What makes the optical line light different from standard linear lights?
The optical line light features a DIY modular system where you can mix and match optical components — lens, reflector, honeycomb grille, and PC cover — to achieve exactly the light distribution you need. This level of optical customization is typically only found in premium architectural lighting.
Can I change the optical components after installation?
Yes. The modular design allows you to swap optical components (lens, reflector, honeycomb, grille) without replacing the entire fixture. This makes it easy to adjust lighting for space redesigns or tenant changes.
Related Products
Linear Pendant

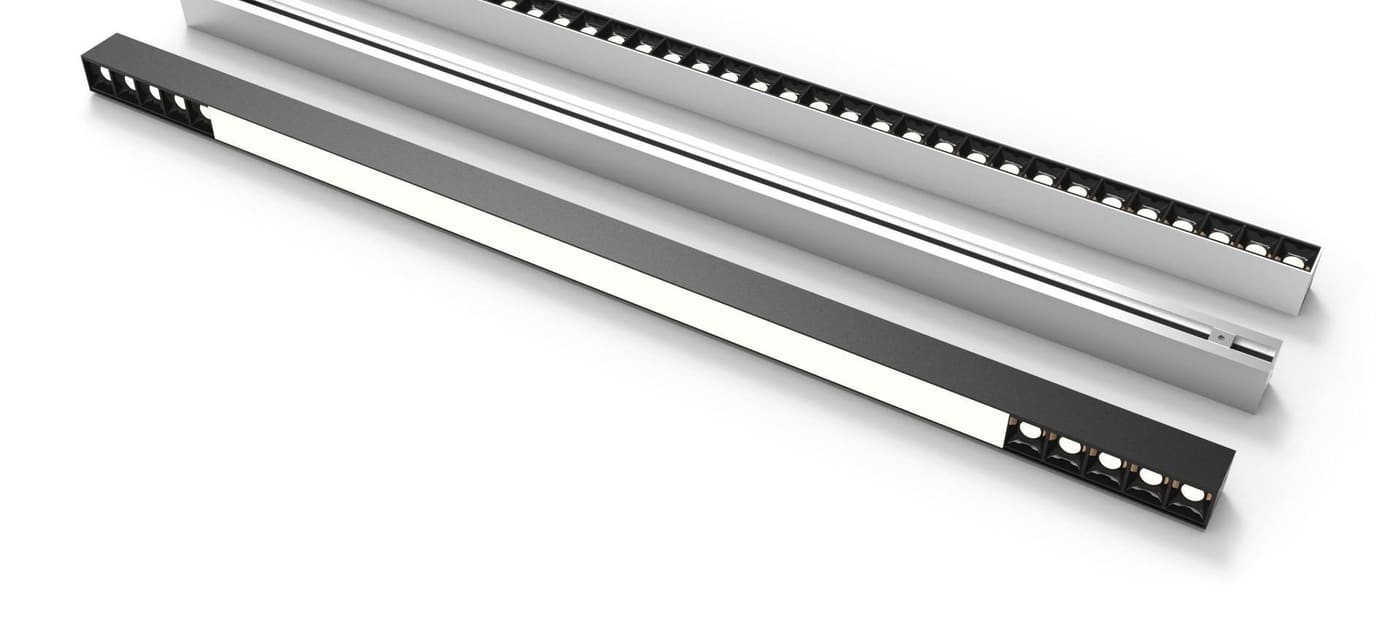

Slim Optical Line Optical Line Light — Slim Profile
Slim 52mm profile with up/down lighting capability
15W-40W per meter IP20 2700K / 3000K / 4000K / 5000K
View Details

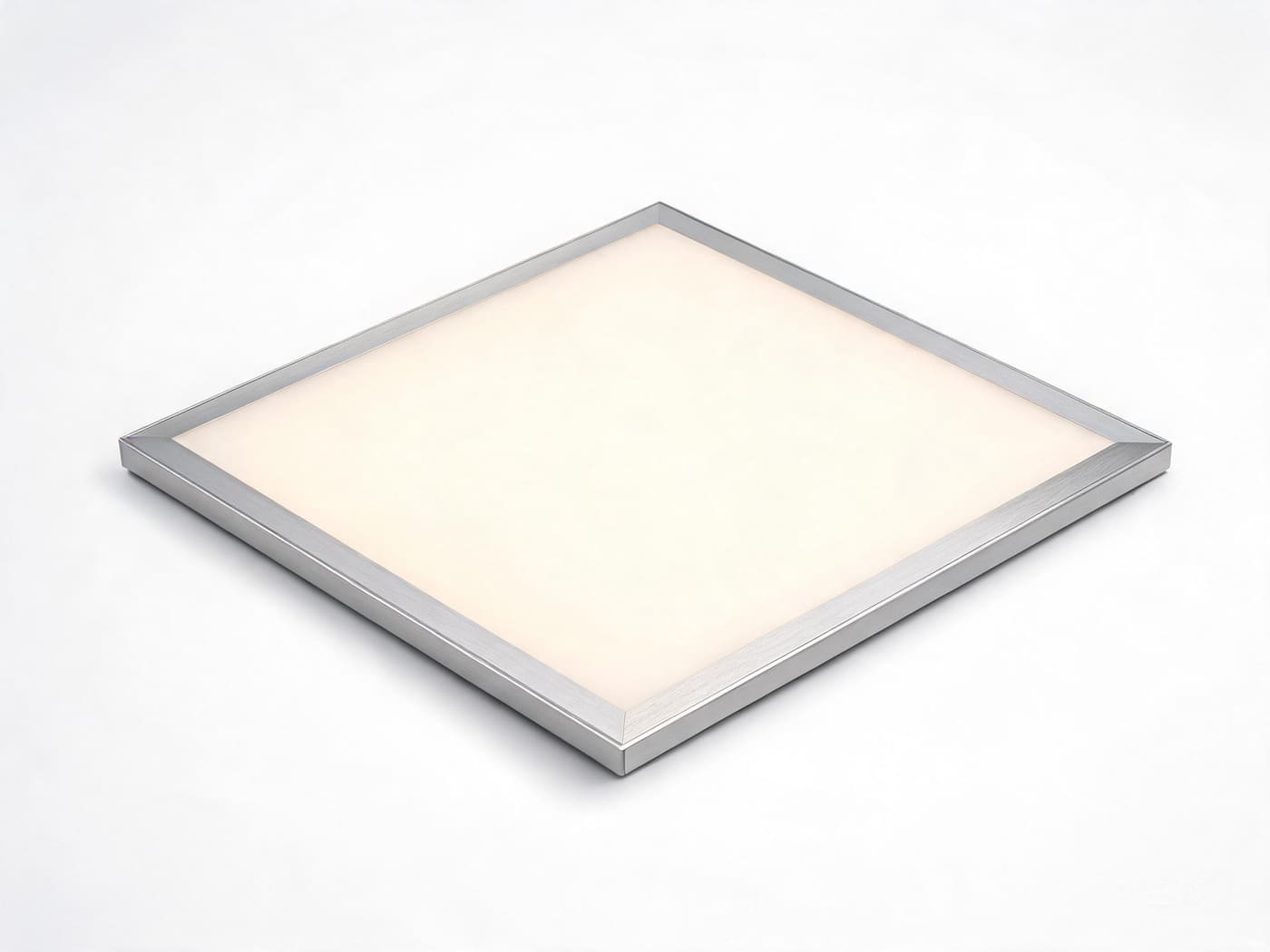

Panel Light Ultra-Thin LED Panel Light
10mm slim edge-lit design with 110-130 lm/W
30W-60W IP40 3000K / 4000K / 5000K / 6000K
View Details
Narrow Beam Downlight Narrow Beam Anti-Glare LED Downlight
Precision 'single beam' optical design with UGR<16
8W-40W IP44 2700K / 3000K / 4000K / 5000K / 6000K
View Details Need a Custom Quote?
Get project-based pricing for Optical Line Light — Wide Profile within 24 hours. SASO/G-Mark documentation included.
