LED Strip

LED Strip Light & Controller System

Name: LED Strip Light & Controller System
Brand: Yakeen Lighting
Availability: InStock

Breakpoint resume pixel strip with DMX/SPI control

Wattage

10W-30W per meter

Efficacy

90-110 lm/W

IP Rating

IP20 / IP65 / IP67

Warranty

3 years

Yakeen LED strip light system, breakpoint resume technology, 12V/24V DC, single color / CCT / RGB, DMX512 & SPI control for architectural and decorative lighting.

SASO G-Mark CE RoHS

MOQ

500 meters

Lead Time

7-15 days

Get Your Quote → WhatsApp

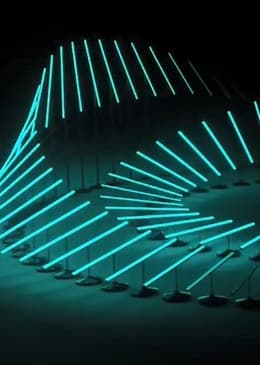

Applications

Where LED Strip Shines

Cove Lighting

Hidden cove illumination for ceilings and architectural features.

Facade Outlines

Building outline and signage backlight.

Bar & Restaurant

Dynamic color lighting for hospitality venues.

Landscape Edges

Outdoor pathway and garden edge accent.

Technical Specifications

Product technical specifications
Parameter	Value
Wattage	10W-30W per meter
Luminous Efficacy	90-110 lm/W
Color Temperature	2700K / 3000K / 4000K / 6000K / RGB
CRI	Ra>80
Beam Angle	120 degrees
IP Rating	IP20 / IP65 / IP67
Dimming	PWM / DMX512 / SPI
Lifespan	L70 > 50,000 hours
Warranty	3 years
Certifications	CE, RoHS
MOQ	500 meters
Lead Time	7-15 days

Key Features

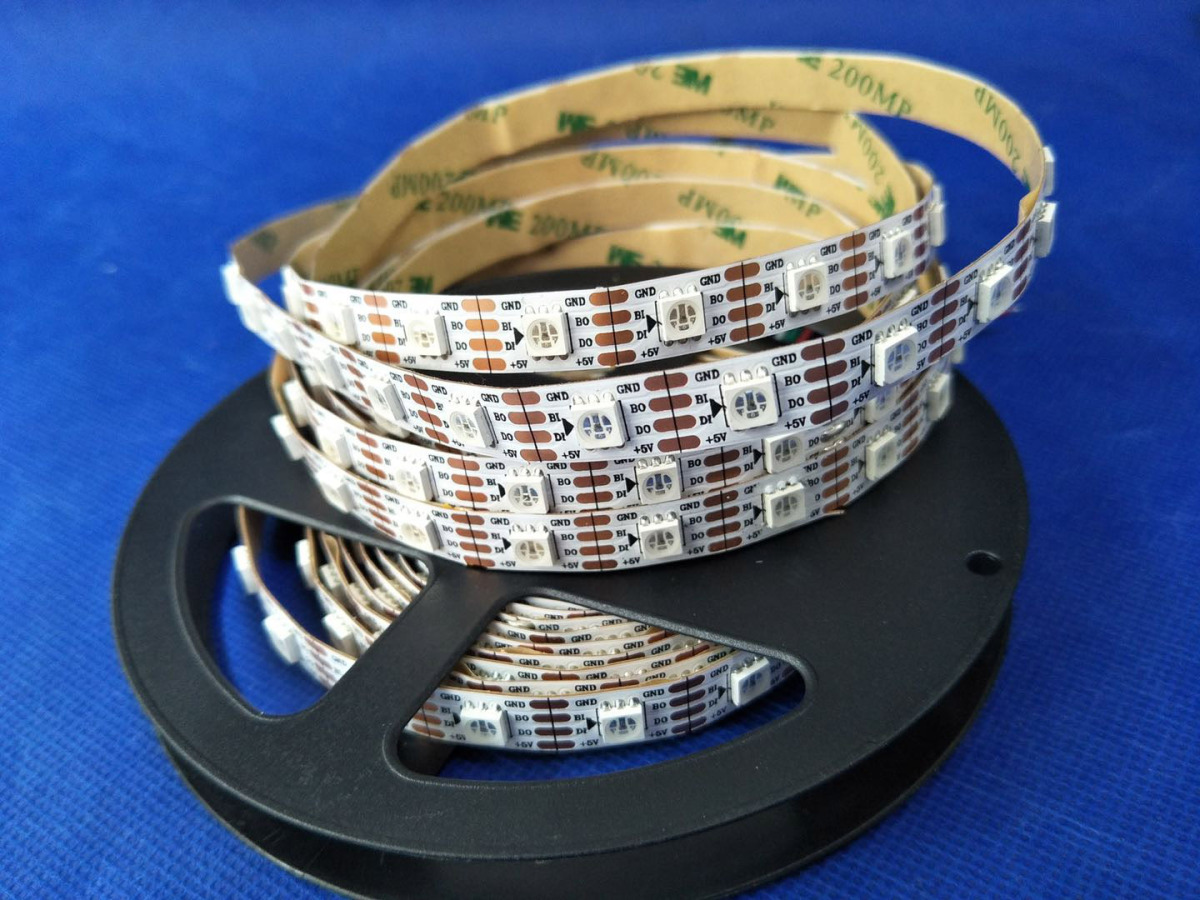

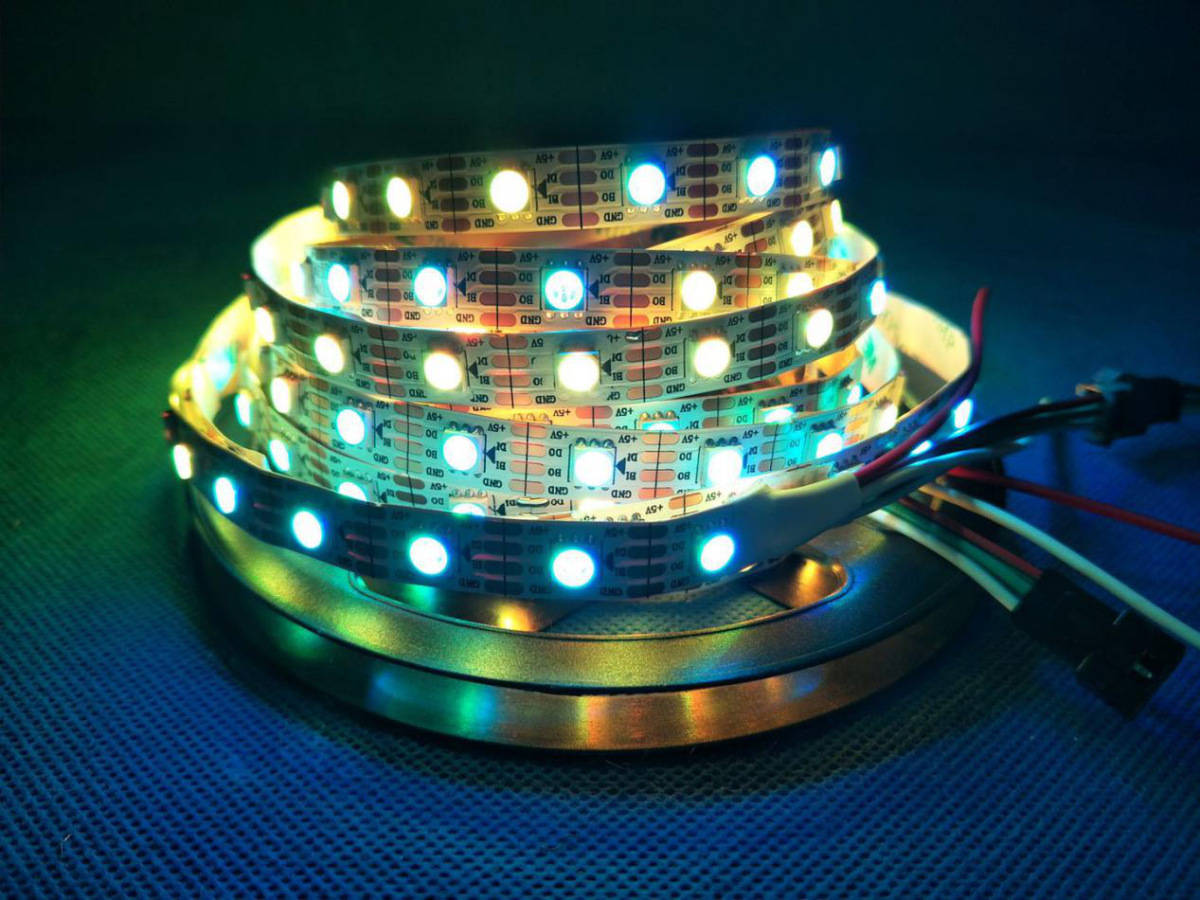

Breakpoint resume technology (single LED failure does not break chain)
Pixel addressable (individual LED control)
12V/24V DC low-voltage safe system
Silicone sleeve for IP67 outdoor use
DMX512 / SPI / PWM controller compatible
3M adhesive backing for easy installation

Technical Options

Dimming: PWM / DMX512 / SPI
Lifespan: L70 > 50,000 hours
CRI: Ra>80
Beam Angle: 120 degrees

FAQ

LED Strip Questions

What is breakpoint resume and why does it matter?

Breakpoint resume means if one LED fails, the rest continue working. Standard strips would have the entire section go dark after a failed LED. This is critical for commercial installations where maintenance access is difficult.

What controller do I need for RGB color scenes?

For static colors: PWM controller. For dynamic scenes: SPI controller (T-1000S or K-1000C). For building-scale synchronization: DMX512 controller (H801TC/H807SA). Yakeen Lighting provides controller selection and programming support.
